The Flygt N 3153 series of medium-power utility water pumps is designed for high efficiency and continuous operation in harsh conditions. The series includes various pressure characteristics and discharge connection sizes.
Compatibility:
Flygt N 3153 pumps are available in explosion-proof versions and with a variety of impeller materials: Hard Iron, gray iron, or stainless steel. They can be installed both submersible and dry (P, S, T, Z configurations).
N-Technology
The Flygt N technology’s mechanically self-cleaning design easily handles the most challenging demands of modern process waters.
The pump’s unique design prevents the formation of soft and hard blockages. The impeller is designed to freely pass most solid particles. If an object is detected on the impeller’s edge, it is redirected to a backward-angled surface and ejected through a special groove.
This design provides:
- A high level of efficiency
- Reduction of working hours
- Reducing the need for unscheduled services
Pumps with Flygt N technology handle slurry concentrations up to 8%.

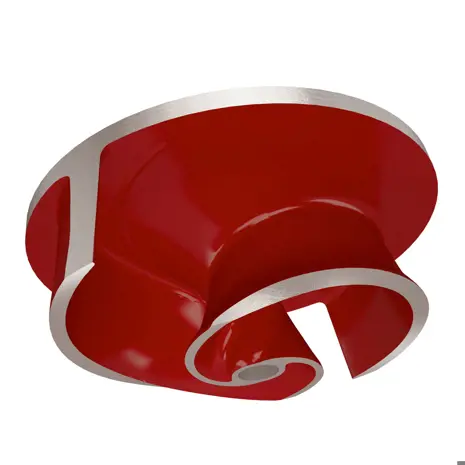

Pump impeller material
Flygt N pump impellers are available in three materials:
- Gray cast ironSuitable for waters with slight corrosive elements
- Hard-Iron (60 HRC)Five times more durable than regular gray iron
- Duplex stainless steelSuitable for highly corrosive environments

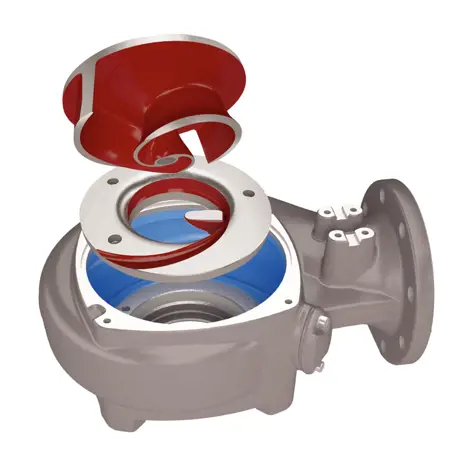

Flexible design

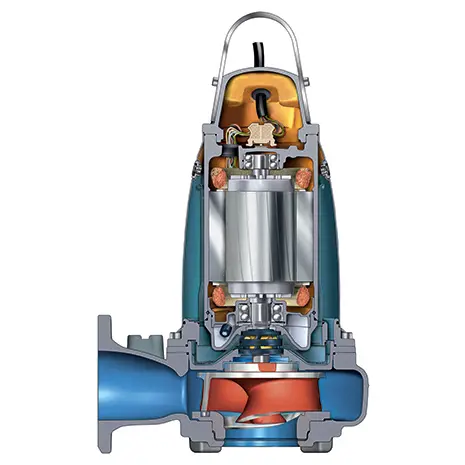

The Flygt N 3153 series’ modular design allows you to customize the pump for various applications:
- Self-cleaning impeller
- Replaceable wear ring
- Chopper ring variant with a cutting function
- IE3 Premium Performance Motor
- Closed internal cooling system
- Flygt Plug-in Active Seal System Support
- Spin-out Protection Feature
Installation options

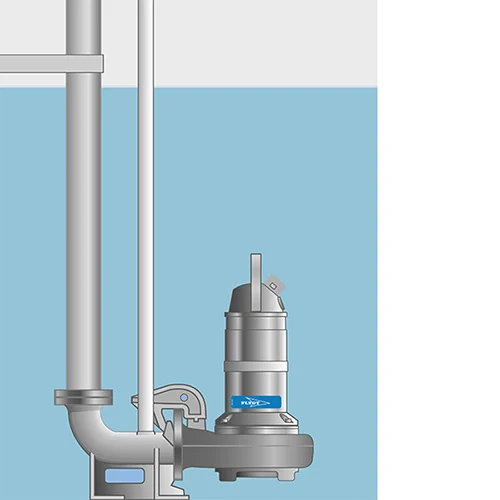

- Submersible unit in a wet well (P)
- Other options are possible depending on the specifications.
The Flygt N 3153 pump series is a reliable and durable solution that offers high-quality performance and minimal maintenance.

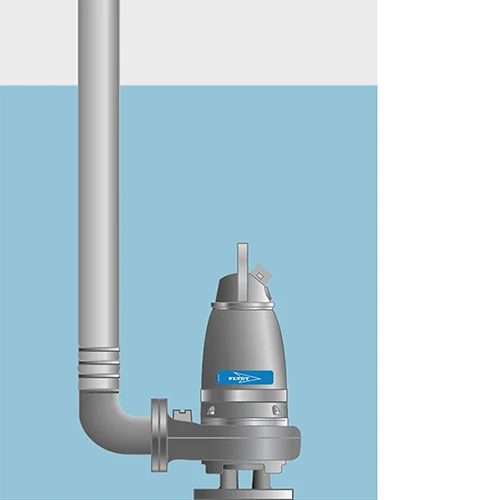

Portable (S):
Portable Submersible Pump Installation: Portable pump with a hose connection or flange for connecting the discharge pipe.

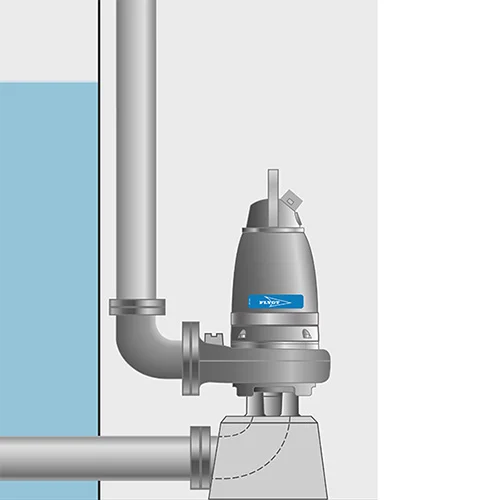

Dry installation vertical (T)
Vertical, permanent, dry pump installation: the submersible pump is installed in a dry pit with flanged connections to the suction and discharge pipes.

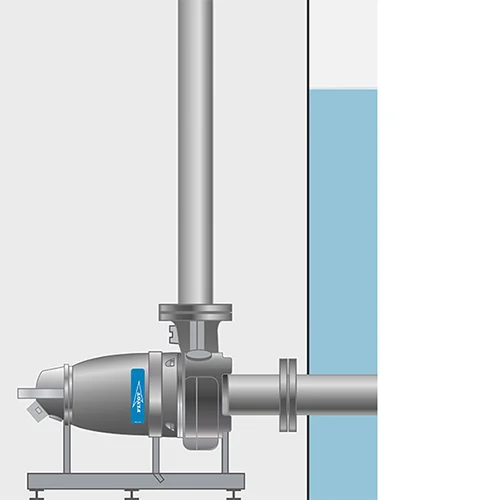

Dry horizontal installation (Z)
Horizontal, permanent, dry pump installation: The submersible pump is installed in a dry pit with flanged connections to the suction and discharge pipes.
